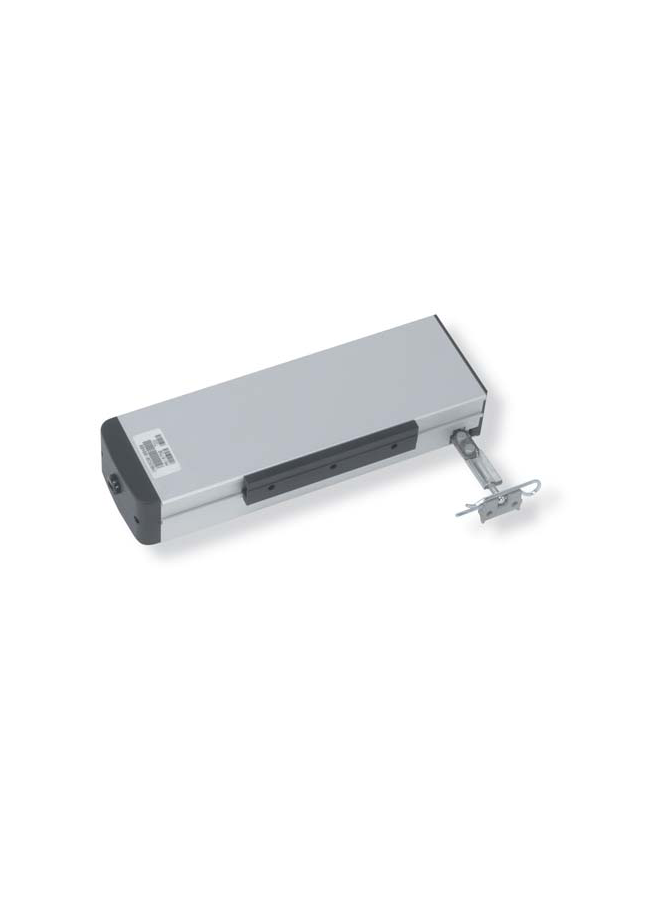

Mingardi MICRO 02 Chain Actuator 380mm

From £217.13

Manufactured by Mingardi

Colour

Voltage

Stroke

Brackets

Mingardi MICRO 02 (or 92) window actuator is one of the most popular window actuators on the market. With its compact design and adjustable stroke settings it makes it the ideal choice for most window applications.
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Cable (refer to instructions for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
  • White (on request)
  • Black (on request)
STROKE OPTIONS
  • 200-380mm (adjustable)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102
SUITABLE FOR
  • Top-hung/Bottom hung windows, velux type centre pivot vents (25kg MAX)
  • Minimum window size = 538mm (w) x 380mm (h)
  • Maximum window size = 1500mm (w) x 2000mm (h)
  • Natural ventilation / Window automation
MANUFACTURER CODE / DESCRIPTION
  • 2700462 (MICRO 02 230V Silver)
  • 2700469 (MICRO 02 230V Black)
  • 2700463 (MICRO 02 230V White)
  • 2700471 (MICRO 02 24V Silver)
  • 2700477 (MICRO 02 24V Black)
  • 2700472 (MICRO 02 24V White)
  • MICRO 02, M02
  • MICRO 92, M92

For any help or technical support please contact our sales team - 01242 622955 | info@windowopeners.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@windowopeners.co.uk.
