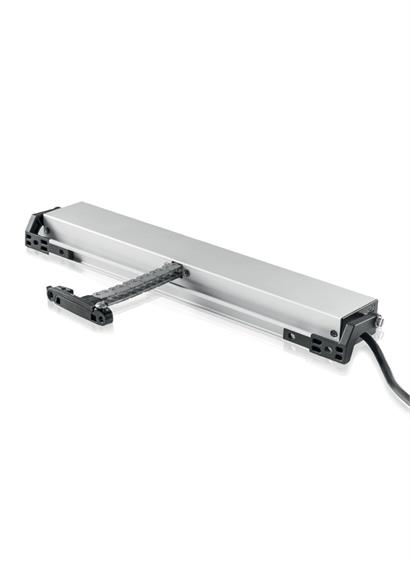

Mingardi MICRO EVO1 Chain Actuator 400mm

From £179.99

Manufactured by Mingardi

Colour

Voltage

Stroke

Brackets

Mingardi MICRO EVO Chain Actuator for use on most window types. With its compact design and adjustable stroke settings (100-400mm) it makes it the ideal choice for most window applications.
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • White RAL 9003
  • Black Anodised
  • Silver Anodised
STROKE OPTIONS
  • 100-200-300-400mm (adjustable)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102
SUITABLE FOR
  • Top-Hung, Bottom-Hung, Side-Hung or Centre Pivot windows
  • Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • 2701007 MICRO EVO chain actuator 230V - black anodised
  • 2701006 MICRO EVO chain actuator 230V - silver anodised
  • 2701012 MICRO EVO chain actuator 230V - white
  • 2701016 MICRO EVO chain actuator 24V - black anodised
  • 2701015 MICRO EVO chain actuator 24V - silver anodised
  • 2701014  MICRO EVO chain actuator 24V - white
