Mingardi MICRO L Chain Actuator (Discontinued)

From £417.29

Manufactured by Mingardi

Colour

Voltage

Stroke

Brackets

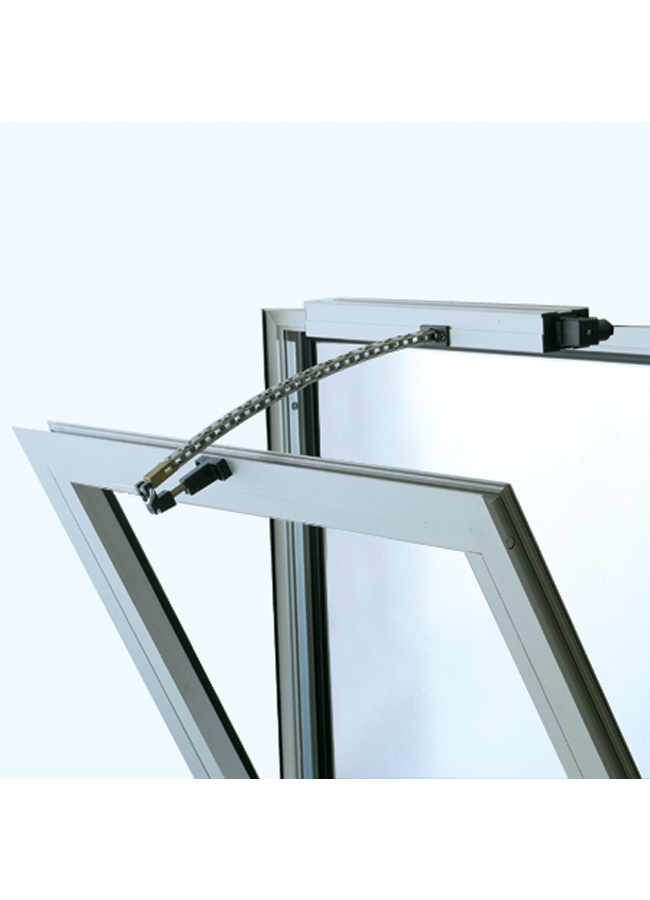

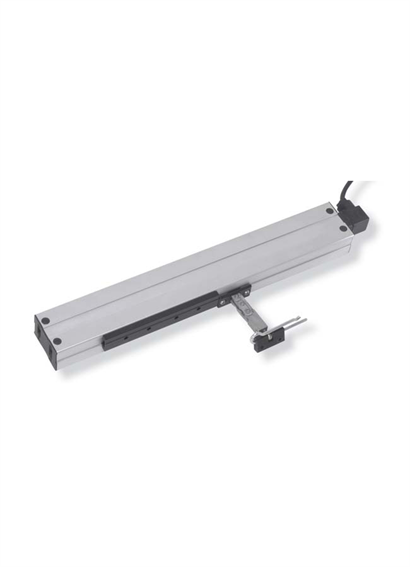

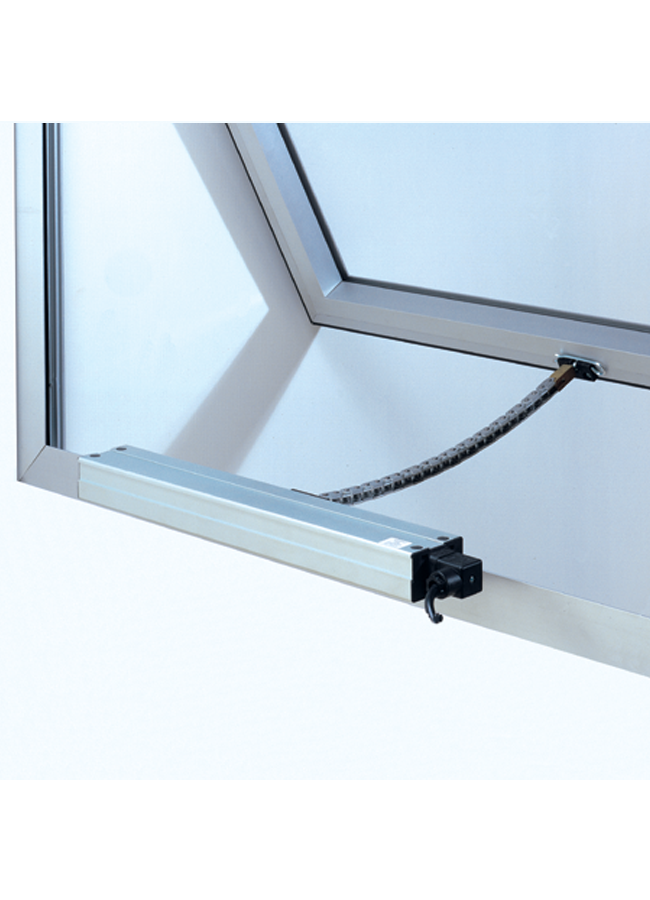

Mingardi MICRO L window actuator is one of the most popular chain actuators on the market. With its compact design and various stroke options it makes it the ideal choice for most window applications.
WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Cable (refer to instructions for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
  • White (on request)
  • Black (on request)
STROKE OPTIONS
  • 280mm
  • 380mm
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102
SUITABLE FOR
  • Top-hung/Bottom hung windows, velux type centre pivot vents (30kg MAX)
  • Minimum window size = 538mm (w) x 380mm (h)
  • Maximum window size = 1500mm (w) x 2000mm (h)
  • Natural ventilation / Window automation
MANUFACTURER CODE / DESCRIPTION
  • Linea Micro L
  • Linea Micro L
  • 2700120 (MICRO L 230V 280mm Silver)
  • 2700515 (MICRO L 230V 280mm Black)
  • 2700334 (MICRO L 230V 280mm White)
  • 2700121 (MICRO L 230V 380mm Silver)
  • 2700534 (MICRO L 230V 380mm Black)
  • 2700335 (MICRO L 230V 380mm White)
  • 2700122 (MICRO L 24V 280mm Silver)
  • 2700524 (MICRO L 24V 280mm Black)
  • 2700337 (MICRO L 24V 280mm White)
  • 2700123 (MICRO L 24V 380mm Silver)
  • 2700544 (MICRO L 24V 380mm Black)
  • 2700338 (MICRO L 24V 380mm White)

For any help or technical support please contact our sales team - 01242 622955 | info@windowopeners.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@windowopeners.co.uk.
