Topp ACK4 Chain Actuator 400mm

From £131.30

Manufactured by Topp

Colour

Voltage

Stroke

Brackets

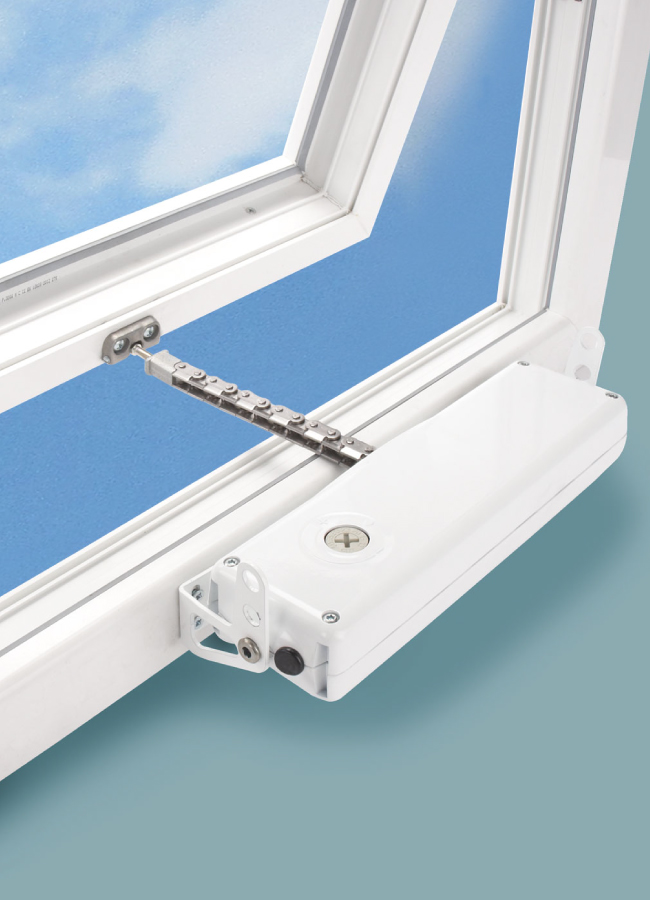

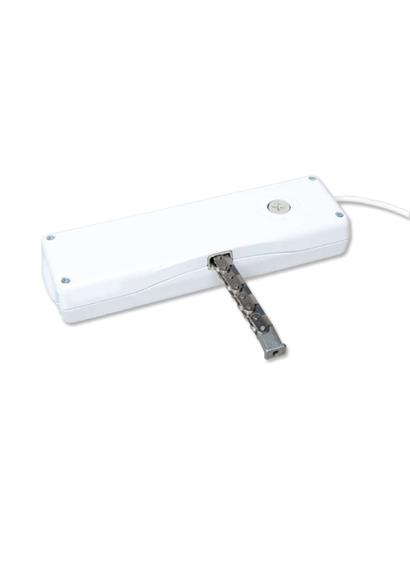

Topp ACK4 (ACK42, ACK44, MAC4) window actuator is the most popular window actuator on the market. With its compact design and adjustable stroke settings it makes it the ideal choice for most window applications.

WHAT'S IN THE BOX?
  • Actuator unit
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing brackets & screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • White (RAL 9010),
  • Black (RAL 9005)
  • Silver (RAL 9006)
STROKE OPTIONS
  • 100-150-200-250-300-350-400mm (adjustable)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102
SUITABLE FOR
  • Top Hung, Bottom Hung, Side Hung or Centre Pivot windows
  • Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • 3A19901 (ACK4 230V 400mm Black)
  • 3A19903 (ACK4 230V 400mm Silver)
  • 3A19902 (ACK4 230V 400mm White)
  • 3A19951 (ACK4 24V 400mm Black)
  • 3A19953 (ACK4 24V 400mm Silver)
  • 3A19952 (ACK4 24V 400mm White)
  • ACK42 (ACK4 230V)
  • ACK44 (ACK4 24V)

For any help or technical support please contact our sales team - 01242 622955 | info@windowopeners.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@windowopeners.co.uk.
