Topp C20 Chain Actuator 360mm

From £125.99

Manufactured by Topp

Colour

Voltage

Stroke

Brackets

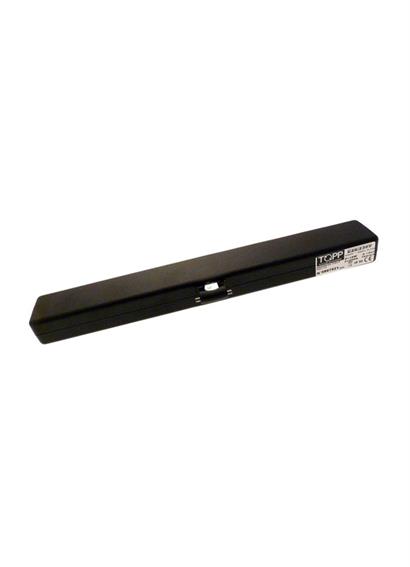

Topp C20 window actuator is one of the most popular window actuators on the market. With its compact plastic design and adjustable stroke settings it makes it the ideal choice for most window applications.

WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional

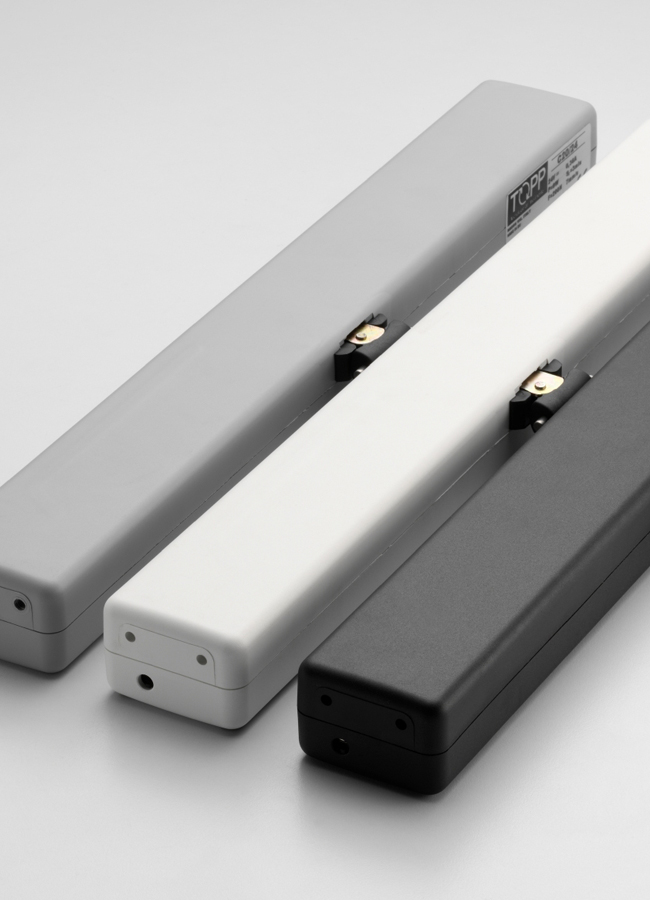

COLOUR OPTIONS
  • White
  • Black
  • Grey
STROKE OPTIONS
  • 240-360mm (adjustable)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102

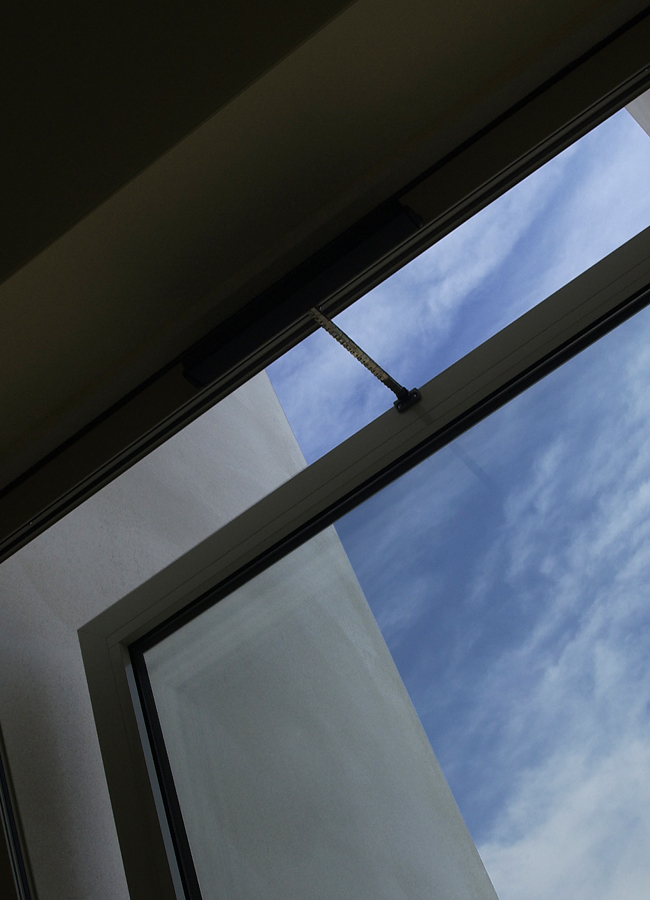

SUITABLE FOR
  • Top-Hung, Bottom-Hung, Side-Hung or Centre Pivot windows
  • Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • 3A39901 C20 chain actuator 230V - black
  • 3A39903 C20 chain actuator 230V - grey
  • 3A39902 C20 chain actuator 230V - white
  • 3A39951 C20 chain actuator 24V - black
  • 3A39953 C20 chain actuator 24V - grey
  • 3A39952 C20 chain actuator 24V - white
