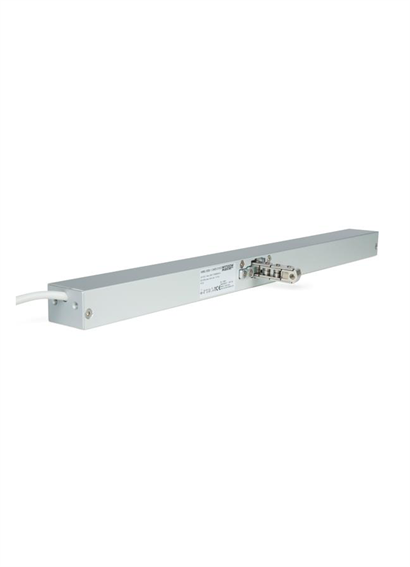

Windowmaster WMU 836 Chain Actuator 400-1000mm

From £364.80

Manufactured by Windowmaster

Colour

Voltage

Stroke

Brackets

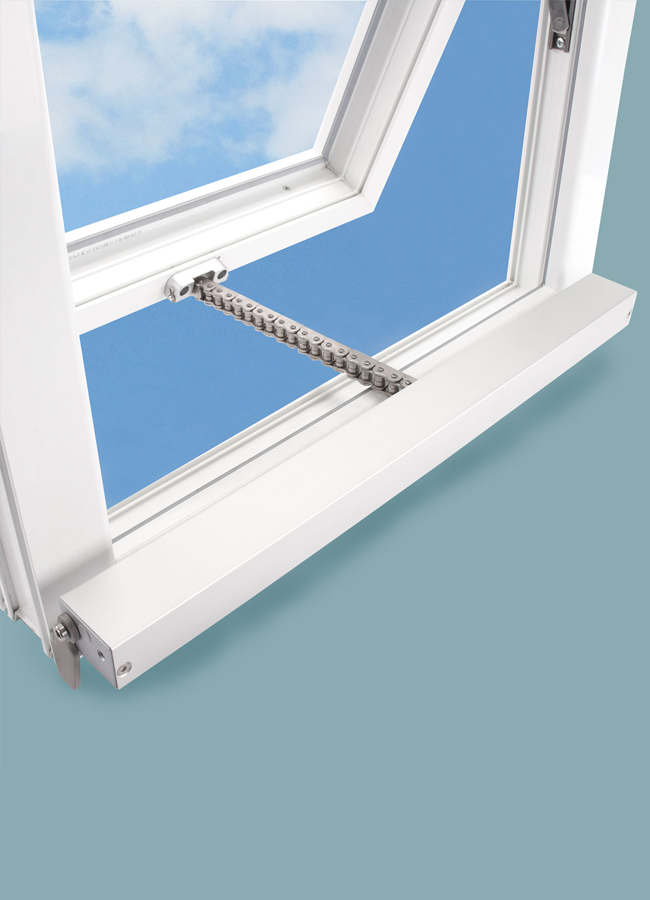

Windowmaster WMU 836 AOV actuator designed for use on most windows and lightweight roof vents. With a choice of larger stroke options it makes it an ideal choice for many smoke control applications.

WHAT'S IN THE BOX?
  • Actuator unit
  • Complete with standard bracket
  • 5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
STROKE OPTIONS
  • 400mm
  • 600mm
  • 800mm
  • 1000mm
CONTROL OPTIONS
  • 24V DC - WSC 204, WSC 204KP, WUC 101, WUC 102
SUITABLE FOR
  • Top-Hung, Bottom-Hung, Side-Hung or Centre Pivot windows
  • Smoke Ventilation / AOV / Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • WMU 836-1 0400 0103 (WMU 836 24V 400mm Silver)
  • WMU 836-1 0600 0103 (WMU 836 24V 600mm Silver)
  • WMU 836-1 0800 0103 (WMU 836 24V 800mm Silver)
  • WMU 836-1 1000 0103 (WMU 836 24V 1000mm Silver)

For any help or technical support please contact our sales team - 01242 622955 | info@windowopeners.co.uk

Next working day on orders placed before 3.00pm (Monday-Friday). Please note some items can be out of stock so we recommend contacting our sales team for availability - 01242 622955 or info@windowopeners.co.uk.
