Comunello L35DUO Chain Actuators 420mm

From £718.46

Manufactured by Comunello

Colour

Voltage

Stroke

Brackets

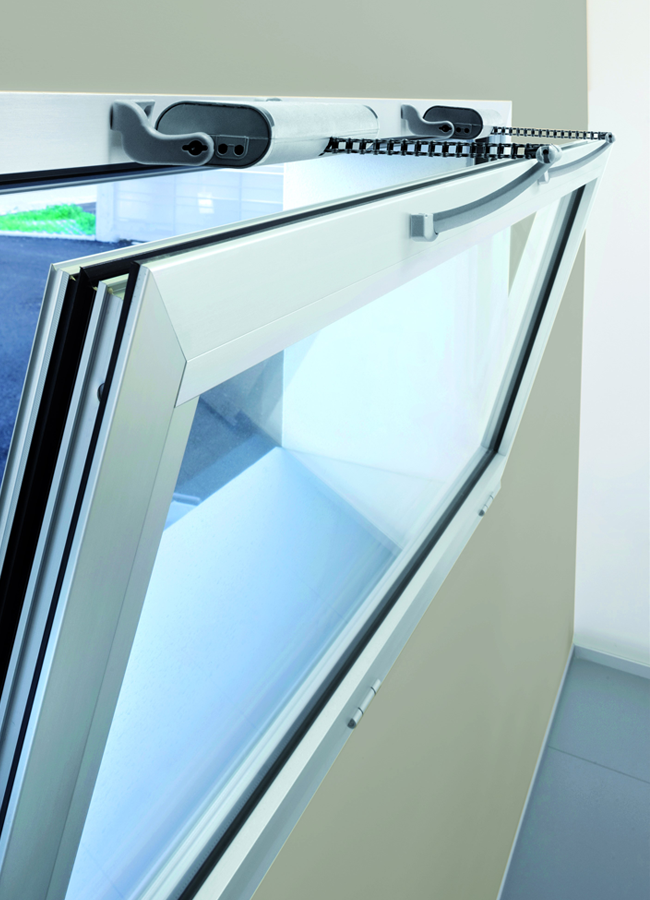

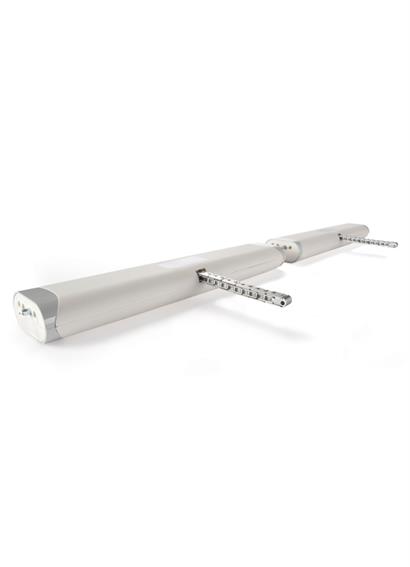

L35DUO window actuators for wider roof vents and windows (1200-2400mm). Unit consists of 2 x actuators designed to work in sync on the same window. Complete with fixing brackets.

WHAT'S IN THE BOX?
  • 2 x L35 Actuators
  • Complete with standard brackets
  • 1 x tandem board
  • 1.5 metres of cable per actuator
WHAT ELSE WILL I NEED?
  • Fixing screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • White (RAL 9010), Black (RAL 9005) or Grey (RAL 7035)
STROKE OPTIONS
  • 50-100-150-200-250-300-350-400-420mm (adjustable)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
  • 24V DC - PSU-2, PSU-4, PSU-8, WUC 101, WUC 102
SUITABLE FOR
  • Top-hung/Bottom hung windows, velux type centre pivot vents (60kg MAX)
  • Minimum window size = 1250mm (w) x 420mm (h)
  • Maximum window size = 2500mm (w) x 2000mm (h)
  • Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • ML35S240L0W00 (L35 DUO 24V 50-420MM WHITE)
  • ML35S240L0B00 (L35 DUO 24V 50-420MM BLACK)
  • ML35S240L0G00 (L35 DUO 24V 50-420MM GREY)
  • ML35S240H0W00 (L35 DUO 230V 50-420MM WHITE)
  • ML35S240H0B00 (L35 DUO 230V 50-420MM BLACK)
  • ML35S240H0G00 (L35 DUO 230V 50-420MM GREY)
  • L35DUO230W, L35DUO230B, L35DUO230G
  • L35DUO24W, L35DUO24B, L35DUO24G
