Mingardi EURO 1 Linear Actuator 70-500mm

From £324.11

Manufactured by Mingardi

Colour

Voltage

Stroke

Brackets

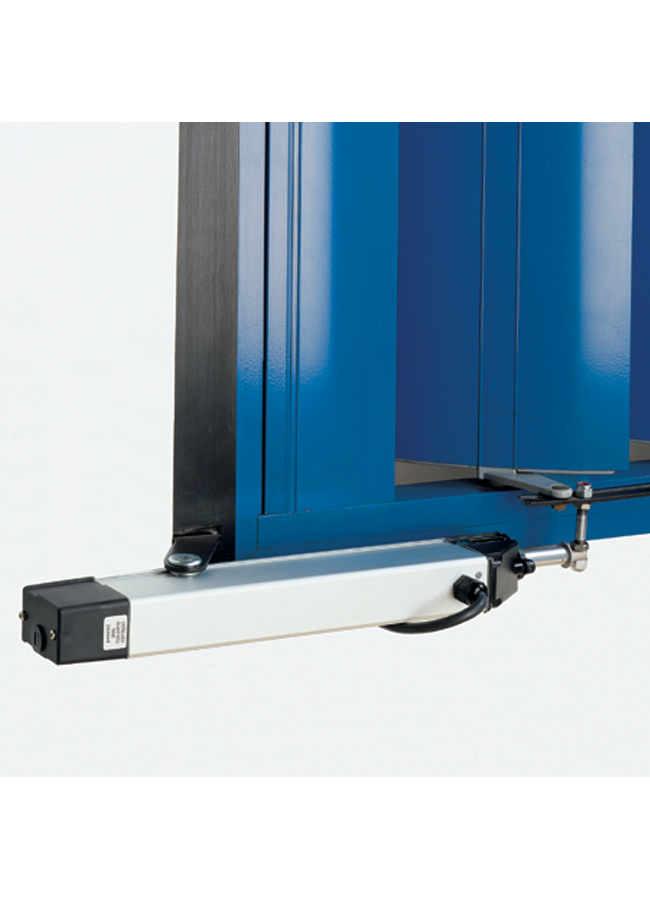

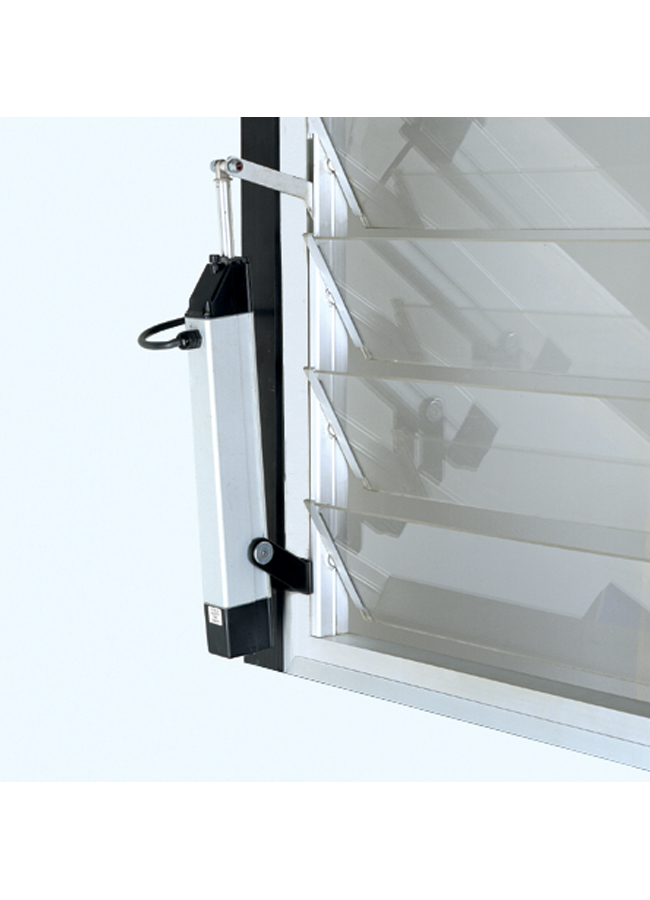

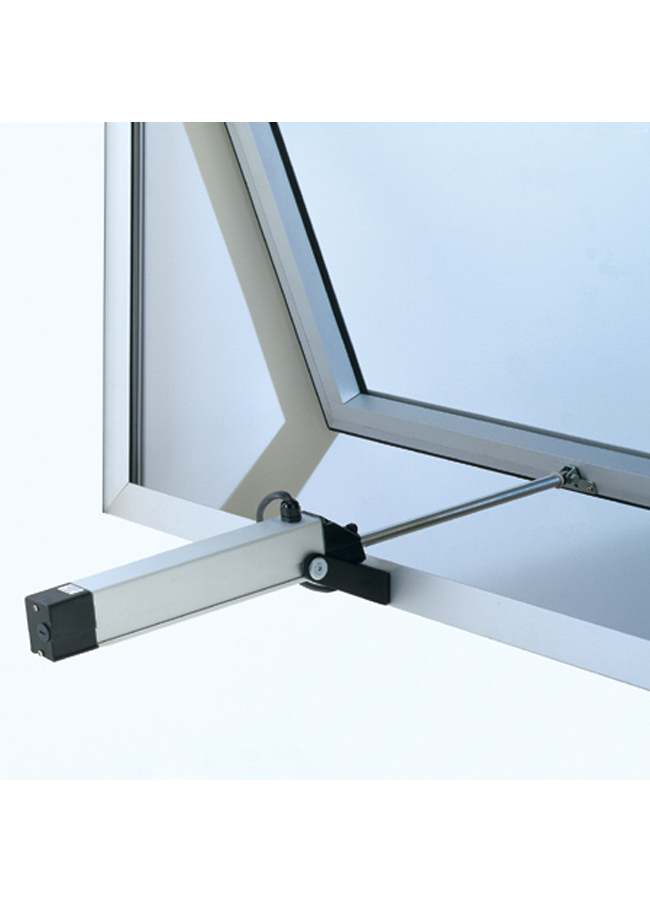

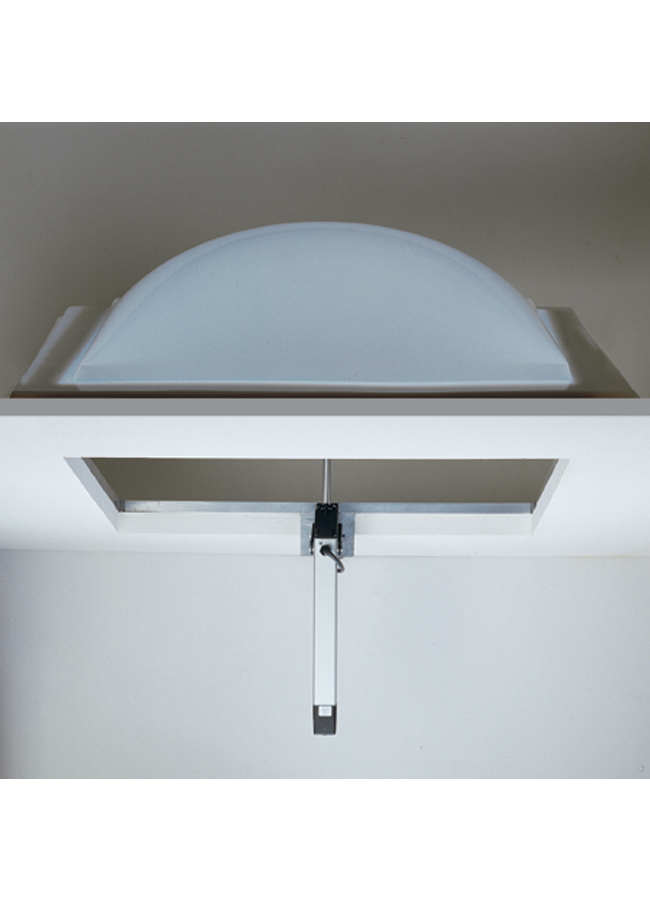

Mingardi EURO 1 Linear Actuator is designed for opening almost any louvre, roof light or dome. With a push/pull force (450N/1000N) and range of stroke sizes it gives the user all the options they will need.
WHAT'S IN THE BOX?

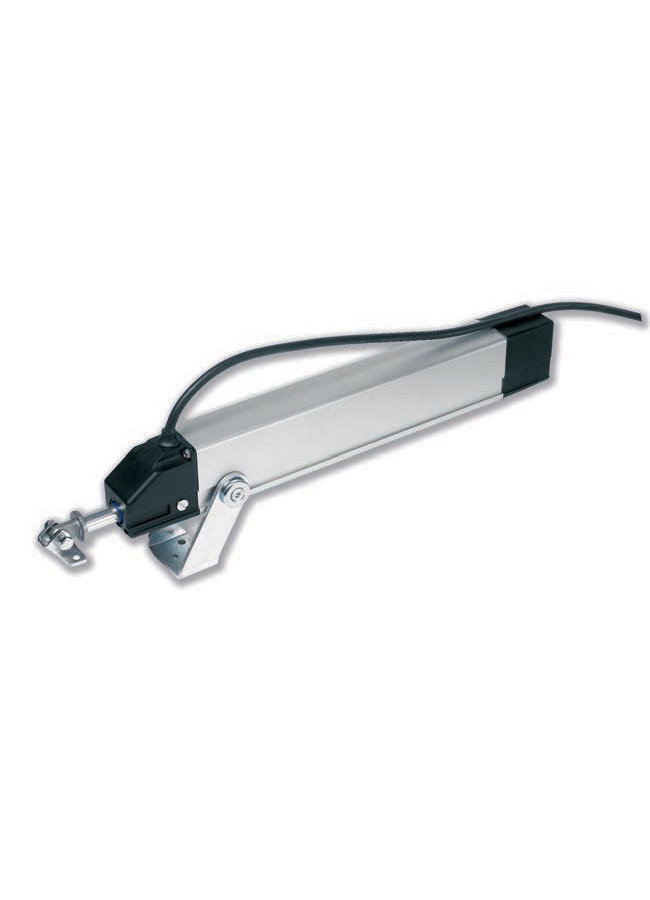

  • Actuator unit
  • Fixing Bracket
  • 1.5 metres of double insulated cable
WHAT ELSE WILL I NEED?
  • Fixing Screws
  • Extra cable if 1.5 metres is not sufficient (refer to manual for correct cable)
  • A qualified electrician or competent professional
COLOUR OPTIONS
  • Silver Anodised
STROKE OPTIONS
  • 70mm (1000N)
  • 200mm (450N)
  • 300mm (450N or 1000N)
  • 500mm (450N)
CONTROL OPTIONS
  • 230V AC - S50-1, RCU1, RRTKEY, EVC, CCU1, CCU2
SUITABLE FOR
  • Louvres, Pitched/Flat roof windows or Centre Pivot windows
  • Natural Ventilation / Window Automation
MANUFACTURER CODE / DESCRIPTION
  • 2700984 (EURO 1 Actuator 230V 1000N 70mm silver)
  • 2700991 (EURO 1 Actuator 230V 1000N 70mm black)
  • 2700979 (EURO 1 Actuator 230V 450N 200mm silver)
  • 2700980 (EURO 1 Actuator 230V 450N 200mm black)
  • 2700981 (EURO 1 Actuator 230V 450N 300mm silver)
  • 2700993 (EURO 1 Actuator 230V 450N 300mm black)
  • 2700994 (EURO 1 Actuator 230V 1000N 300mm silver)
  • 2700995 (EURO 1 Actuator 230V 1000N 300mm black)
  • 2700983 (EURO 1 Actuator 230V 450N 500mm silver)
  • 2700986 (EURO 1 Actuator 24V 1000N 70mm silver)
  • 2700987 (EURO 1 Actuator 24V 1000N 70mm black)
  • 2700967 (EURO 1 Actuator 24V 450N 200mm silver)
  • 2700988 (EURO 1 Actuator 24V 450N 200mm black)
  • 2700969 (EURO 1 Actuator 24V 450N 300mm silver)
  • 2700989 (EURO 1 Actuator 24V 450N 300mm black)
  • 2700990 (EURO 1 Actuator 24V 1000N 300mm silver)
  • 2700971 (EURO 1 Actuator 24V 450N 500mm silver)
